Chain Link 2 1/2" [2 3/8" OD] Round Post x 1 5/8" Round Gate Frame Mini Cantilever Roller w/ Safety Cover for Sliding Gates (Malleable Steel)
Details
Chain Link 2 1/2" [2 3/8" OD] Round Post x 1 5/8" Round Gate Frame Mini Cantilever Roller w/ Safety Cover for Sliding Gates (Malleable Steel)

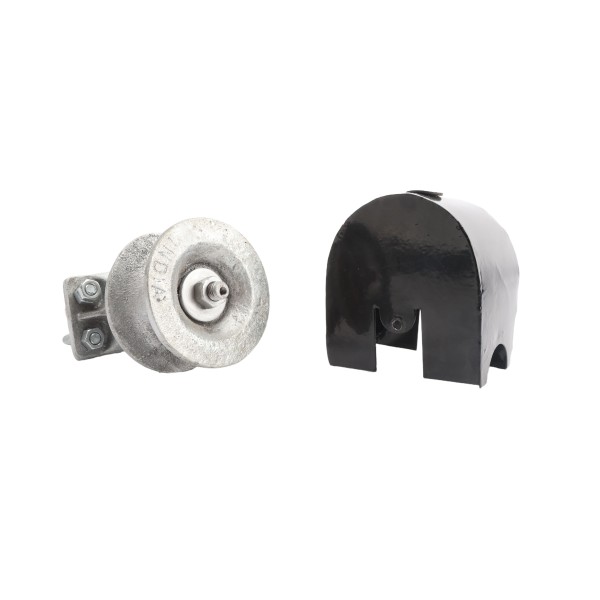

The 2 1/2" [2 3/8" Actual OD] Round Post x 1 5/8" [1 5/8" Actual OD] Round Gate Frame Steel Mini Cantilever Roller With Safety Cover For Sliding Gates is made of galvanized steel and features a 4" wheel. It's designed for sliding pipe gates and helps the gate move smoothly in a lateral direction. A cantilever gate is a gate that is longer than the actual opening to allow for open and closed sliding and standard use requires four rollers per gate, with two on the top and two on the bottom. This durable roller's galvanized finish means it won't rust or corrode and it's designed for years of outstanding performance even in heavy-duty applications.
Features:
- Includes Safety Cover
- Designed For Sliding Gates
- Standard Use Requires Four Rollers Per Gate
- Galvanized Finish Protects Against Rust And Corrosion
Specifications:
- Material: Steel
- Wheel Size: 4"
- Finish: Galvanized
- Fits Gate Size: 1 5/8" [1 5/8" Actual OD]
- Fits Post Size: 2 1/2" [2 3/8" Actual OD]
| Chain Link Fitting | Cantilever Rollers |
|---|---|
| SKU | CRA25E |
| Finish | Galvanized |
| Material Type | Pressed Steel |
| Product Type | Single Sealed Bearing |
| Post Size | 2 1/2" Round [2 3/8" OD] |
| Cover or Roller | Roller |
| Gate Frame Size | 1 5/8" Round [1 5/8" OD] |
| Wheel Size | 4" Diameter |
| Roller Material | Steel |
| Max Load Capacity* | 2000 lbs |
