Chain Link 1 5/8" x 1 5/8" Line Rail Clamp - Boulevard Clamp (Galvanized Steel)
Details
Chain Link 1 5/8" x 1 5/8" Line Rail Clamp - Boulevard Clamp (Galvanized Steel)

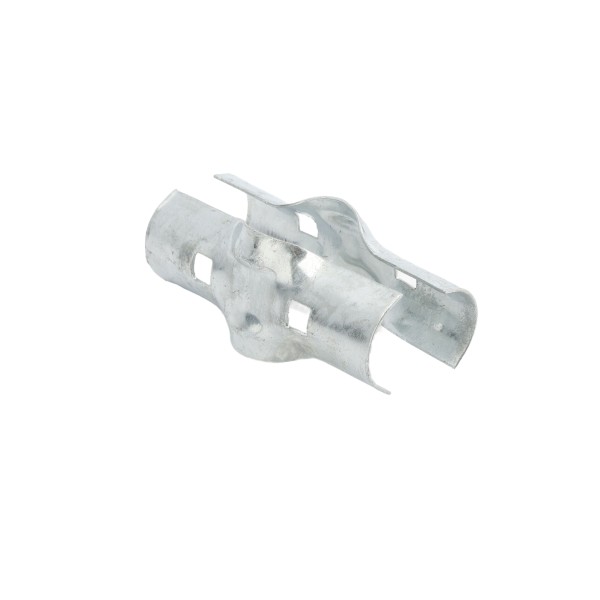

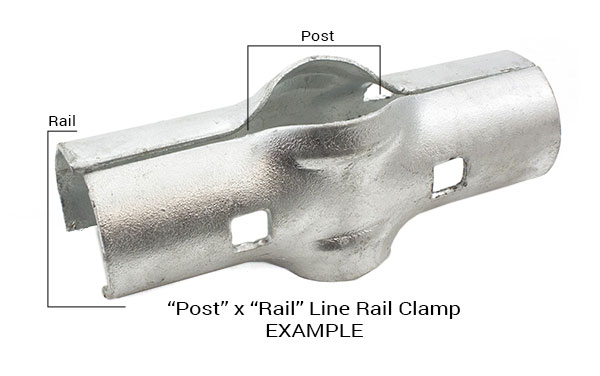

The 1 5/8" x 1 5/8" Line Rail Clamp, also known as a Boulevard Clamp or a Tee Clamp, connects two horizontal chain link fence rails. This two-piece clamp is made of galvanized steel and features holes at both ends for railing, and two holes in the center to accept a post. The fence post inserts into the center of the clamp, forming a strong, stable T-shaped connection. Strong and sturdy, this clamp is designed to last in a variety of settings and to withstand whatever the elements can throw at it thanks to its galvanized finish to ward off rust. A carriage nut and bolt are required for installation and are sold separately.
Features:
• Two-Piece Clamp
• Steel Line Rail Clamps For Chain Link Fencing
• Forms T-Shaped Connection For Rails And Posts
• Carriage Nut And Bolt Required For Installation (Sold Separately)
Specifications:
• Material: Steel
• Fits Rail Size: 1 5/8"
• Fits Post Size: 1 5/8"
• Requires 3/8" x 2 1/2" Carriage Bolt
Please Note: Nut and bolt not included. Due to manufacturing differences, the product you receive may not match the picture.
| Chain Link Fitting | Line Rail Clamps |
|---|---|
| SKU | LRC1515 |
| Material Type | Pressed Steel |
| Rail Size | 1 5/8" [1 5/8" OD] |
| Uses Carriage Bolt Size | 3/8" x 2 1/2" |
| Finish | Galvanized |
| Post Size | 1 5/8" [1 5/8" OD] |
