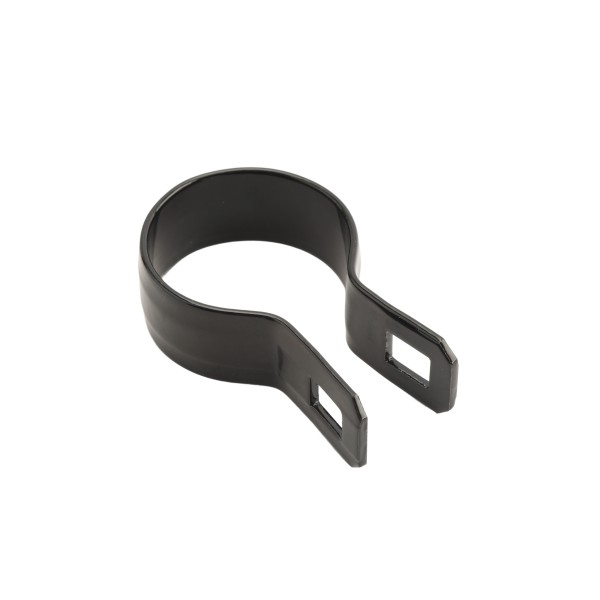

Chain Link 1 5/8" [1 5/8" OD] Beveled Black Brace Band [12 Gauge] - Rail End Band (Galvanized Steel)
Details
Chain Link 1 5/8" [1 5/8" OD] Beveled Black Brace Band [12 Gauge] - Rail End Band (Galvanized Steel)
The 1 5/8" [1 5/8" OD] beveled brace band is a rail end band built for Chain-Link Fence Frame Work. The beveled profile fits flush against the post, making it easier to seat the band correctly before bolting. Like all brace bands, it attaches to the end rail cup at the top of the terminal post and to the tension wire at the bottom. Two are needed per post, one at the top and one at the bottom. Made from 12-gauge black powder-coat steel, this band is compatible with standard chain-link fence hardware at this post size. The black powder-coat finish works well on black chain-link fence systems. Bolts are sold separately. Find matching black carriage bolts and nuts to complete your order.
Features:
- Also called a rail end band
- Beveled profile seats closer to the post surface before bolting
- Attaches to the end rail cup at the top of the terminal post and to the tension wire at the bottom
- Two bands required per terminal post, one at the top and one at the bottom
- For Chain-Link Fence Frame Work
- Bolts sold separately
Specifications:
- Post Size: 1 5/8" [1 5/8" OD]
- Band Height: 7/8"
- Gauge: 12 gauge
- Material: Galvanized steel
- Finish: Black powder-coat finish over galvanized steel
| SKU | BB15B-BEV |
|---|---|
| Gauge | 12 Gauge |
| Height | 7/8" |
| Band Type | Beveled |
| Material Type | Pressed Steel |
| Uses Carriage Bolt Size | 5/16" x 1 1/4" |
Post Size
Need to know the difference between Pipe and Gate Frame Sizes? Check out our guide!
Learn More
|
1 5/8" [1 5/8" OD] |
| Finish | Powder-Coated Black |
