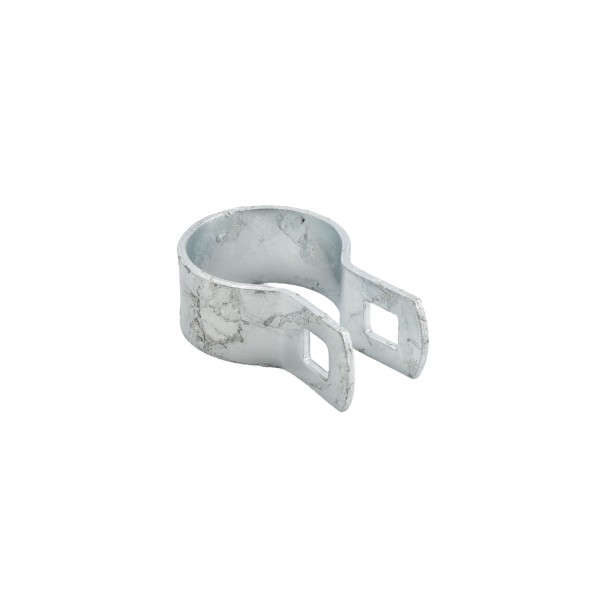

Chain Link 1 5/8" [1 5/8" OD] Heavy Brace Band - Rail End Band (Galvanized Steel)
Details
Chain Link 1 5/8" [1 5/8" OD] Heavy Brace Band - Rail End Band (Galvanized Steel)
Brace bands are necessary fittings that you'll commonly see on a chain link fence. They are required to attach the top rail to the fence posts, using carriage bolts that can be secured to the end rail caps. This 1 5/8" Heavy Brace band is ideal for commercial and industrial settings. The thicker gauge makes it stronger for heavy-duty use.
Features:
- Fits 1 5/8" (1 5/8" Actual OD) Fence Post
- Heavy-Duty 11 Gauge Steel
- Long-Lasting, Corrosion-Resistant Material
- Used To Attach Chain Link Fabric To Line And Terminal Posts
- Specifically Designed For Commercial And Industrial Applications
Specifications:
- Band Height: 1"
- Post Size: 1 5/8" (1 5/8" Actual OD)
- Thickness: 0.125" (11 Gauge)
- Material: Heavy-Duty Galvanized Steel
| Chain Link Fitting | Brace Bands |
|---|---|
| SKU | BB158-H |
| Gauge | 11 Gauge |
| Height | 1" |
| Band Type | Heavy |
| Material Type | Pressed Steel |
| Uses Carriage Bolt Size | 5/16" x 1 1/4" |
Post Size
Need to know the difference between Pipe and Gate Frame Sizes? Check out our guide!
Learn More
|
1 5/8" [1 5/8" OD] |
| Finish | Hot Dipped Galvanized |
