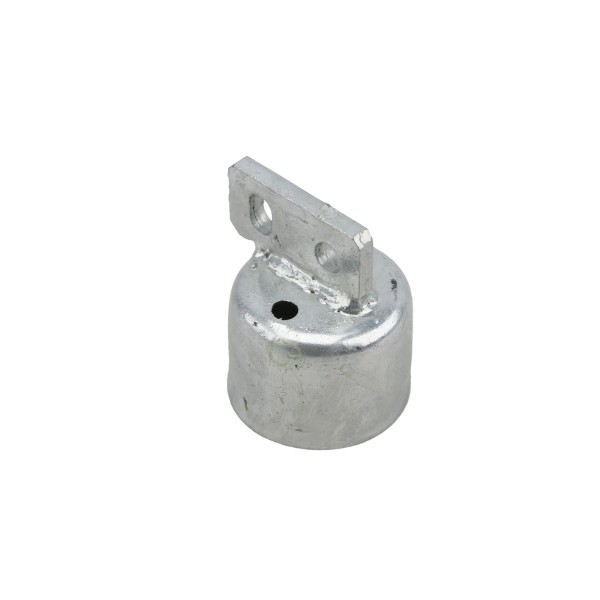

Chain Link 2 1/2" [2 3/8" OD] Brace Rail End Cup - End Rail (Pressed Steel)

This Rail End Cup fits a 2 1/2" rail and can hold a top rail, mid-rail, and bottom rail in place using a brace band and carriage bolt. Typically used for residential chainlink fences, installation is easy; simply attach the rail end cap to the terminal post with a brace band, align the three holes and, insert the carriage bolt, then tighten the nut until secure. One Rail End Cap is required for each top rail, mid-rail, or bottom rail connection. Brace Bands and Carriage Bolts & Nuts sold separately.


Part Number: BRES25

$4.36 each
OR
Quantity Price Each
  1+$4.36
  100+$4.2980
  200+$4.1450
  400+$4.0650
  800+$4.0110


Details

Chain Link 2 1/2" [2 3/8" OD] Brace Rail End Cup - End Rail (Pressed Steel)

The Steel Rail End Cup is designed to add stability to chain link fence terminal posts for top rails, mid-rails, and bottoms rails when used in tandem with a brace band and carriage bolt. Easy to install for residential chain link fences, these rail end cups attach to the rail and terminal post aligned with the brace band for a secure connection of the rail and post. Also known as a rail end, the Rail End Cup has a high-quality steel construction that resists rust for long-term outdoor use and features a welded-on two-hole tab. Fits 2 1/2" (2 3/8" OD Actual) Rail.

Features:

  • Fits 2 1/2" Rail
  • Adds Stability To Chain Link Fence
  • Heavy-Duty Rust-Resistant Steel Construction
  • One Rail End Cap Required For Each Rail Connection
  • Brace Bands And Carriage Bolts & Nuts Sold Separately
  • Designed For Residential Chain Link Fence Applications
  • Two-Hole Weld-On Tab Designed For Additional Support
  • Easy To Install Using A Brace Brand And Carriage Bolt And Nut
  • Creates Secure Connections For Rail And Chain Link Fence Posts

Specifications:

  • Offset
  • Galvanized
  • Pressed Steel
  • Rail Size: 2 1/2" (2 3/8" OD Actual)
  • Uses Carriage Bolt Size: 5/16 x 1 1/4"
  • Fits Externally Onto Rail And Connects Using Brace Band And Bolt
Chain Link Fitting End Rail Cups
Name Chain Link 2 1/2" [2 3/8" OD] Brace Rail End Cup - End Rail (Pressed Steel)
SKU BRES25
Type Brace
Material Type Pressed Steel
Rail Size 2 1/2" [2 3/8" OD]
Uses Carriage Bolt Size 5/16" x 1 1/4"
Condition New
Price $4.36
