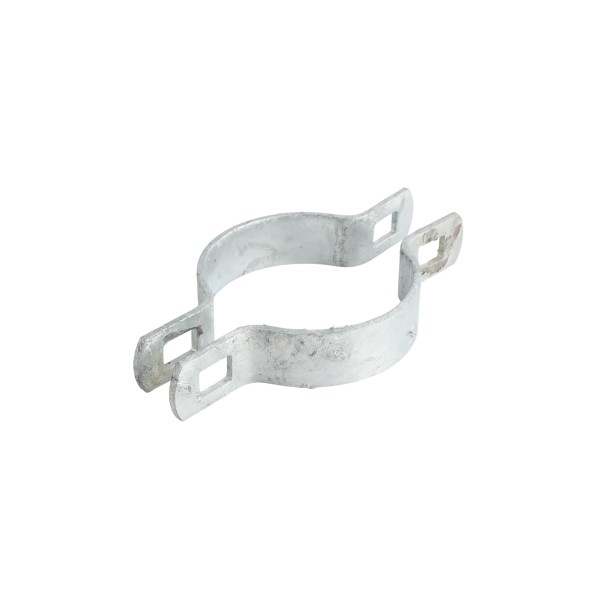

Chain Link 2 1/2" [2 3/8" OD] Two-Way Brace Band - 180 Degree Rail End Band (Galvanized Steel)
Details
Chain Link 2 1/2" [2 3/8" OD] Two-Way Brace Band - 180 Degree Rail End Band (Galvanized Steel)
Chain Link Two-Way Brace Bands are specially made so they can be used on line posts or allow for two fittings to be attached on either side of the fence post. Brace bands are essential to the construction of a chain link fence. They secure the top rail to the posts using carriage bolts that attach to the end rail caps. They can also be used to add other specialty fittings. This 2 1/2" Two-Way Brace Band is ideal for residential applications.
Features:
- Fits 2 1/2" [2 3/8" Actual OD] Fence Posts
- Long-Lasting, Corrosion-Resistant Material
- Requires 5/16" x 1 1/4" Carriage Bolts And Nuts
- Used To Attach Chain Link Fabric To Line And Terminal Posts
- Standard 12 Gauge Steel Designed For Residential Applications
Specifications:
- Band Height: 3/4"
- Post Size: 2 1/2" (2 3/8" OD Actual)
- Thickness: 0.11" (12 Gauge)
- Carriage Bolt Size: 5/16" x 1 1/4"
- Material: Heavy-Duty Galvanized Steel
*Note: Due to manufacturing differences, the product you receive may not match the picture.
| Chain Link Fitting | Brace Bands |
|---|---|
| SKU | TW-BB25 |
| Gauge | 12 Gauge |
| Height | 3/4" |
| Band Type | Two-Way |
| Material Type | Galvanized Steel |
| Uses Carriage Bolt Size | 5/16" x 1 1/4" |
Post Size
Need to know the difference between Pipe and Gate Frame Sizes? Check out our guide!
Learn More
|
2 1/2" [2 3/8" OD] |
| Finish | Galvanized |
