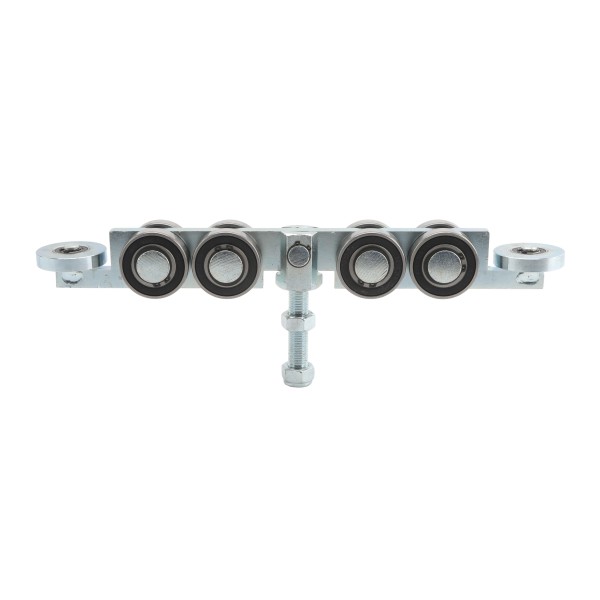

Chain Link 4-Wheel Truck Assembly Includes 2" [1 7/8" OD] Guide Wheels and 2" Standard Bearings (Galvanized Steel)
Details
Chain Link 4-Wheel Truck Assembly Includes 2" [1 7/8" OD] Guide Wheels and 2" Standard Bearings (Galvanized Steel)
The 4 Wheel Truck Assembly features 2" guide wheels and 2" standard bearings. This 4-wheel truck assembly is 11" long and is designed to be mounted in standard or overhead mounting tracks. Truck assemblies are generally used in situations where full cantilever gate systems are implausible. This helps keep most moving parts and mechanical processes encased in the guide frames, protecting them from inclement weather and erosion.
Features:
• Easy To Install
• Great Fit In Applications Where Full Cantilever Gate Systems Won't
• Keeps Most Moving Parts And Mechanical Processes Encased In The Guide Frames, Protecting Them From Weather
Fit
Specifications:
• Center Bolt: 5/8"
• Nominal: 2" Diameter
• Material: Galvanized Steel
• Vertical Wheel O.D. 2.045"
• Horizontal Wheel O.D. 2.125"
Please Note: Due to manufacturing differences, the product you receive may not match the picture.
| Chain Link Fitting | Truck Assembly |
|---|---|
| SKU | IG-4 |
| Product Type | Truck Assemblies |
| Finish | Galvanized |
| Length | 11" |
| Material Type | Pressed Steel |
| Wheel Size | 2" Diameter |
