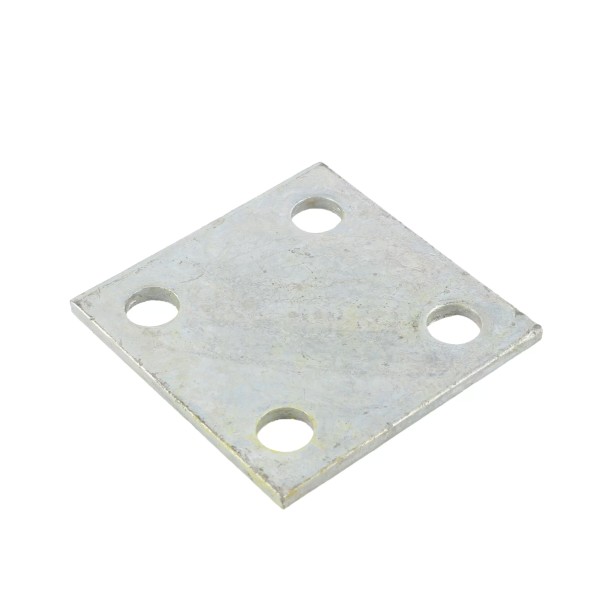

Chain Link 1/4" x 4" x 6" Weldable Surface Mount Floor Flange - Base Plate (Hot Dip Galvanized Steel) 4 Hole 5/8"

Details

Chain Link 1/4" x 4" x 6" Weldable Surface Mount Floor Flange - Base Plate (Hot Dip Galvanized Steel) 4 Hole 5/8"

The 1/4" x 4" x 6" Galvanized Steel Base Plate Weldable Floor Flange is used to mount a chain link fence to concrete or wood. It's made of durable, heavy-duty galvanized pressed steel for lasting performance and thanks to that galvanized finish, it's also rust-resistant. It comes with four pre-drilled holes to mount it to the surface below. Installation is as simple as cutting a post to the proper length, setting it inside the flange and screwing the flange in place.

Features:

• Easy To Install
• Four Bolt Holes
• Used To Mount A Chain Link Fence Post To Concrete Or Wood

Specifications:

• Length: 6"
• Width: 4"
• Anchor Bolt Hole Size: 5/8" Holes
• Thickness: 1/4"
• Material: Heavy-Duty Galvanized Steel

Please Note: Posted specifications are subject to change. Contact a sales consultant to confirm specs. Due to manufacturing differences, the product you receive may not match the picture.

Frequently Asked Questions

Can this flange be welded?

Yes, it is weldable, but appropriate precautions should be taken due to the hot-dip galvanization.

What are the dimensions of this flange?

It measures 1/4 inch thick, 4 inches wide, and 6 inches long, with pre-drilled holes for mounting.

What type of post mounting applications is this surface mount floor flange used for?

This surface mount floor flange is commonly used for welding fence post floor flanges to metal posts, ensuring a secure and stable installation. Learn more about the various flange types here: How Do I Mount A Chain Link Fence To The Ground?

What makes this a heavy-duty floor flange?

The 1/4-inch thick galvanized steel construction makes this heavy-duty floor flange strong enough for fence posts, railings, and other structural applications.

Is this galvanized steel floor flange resistant to rust?

Yes, this galvanized steel floor flange is hot-dip galvanized, making it highly resistant to rust and corrosion in outdoor environments.
