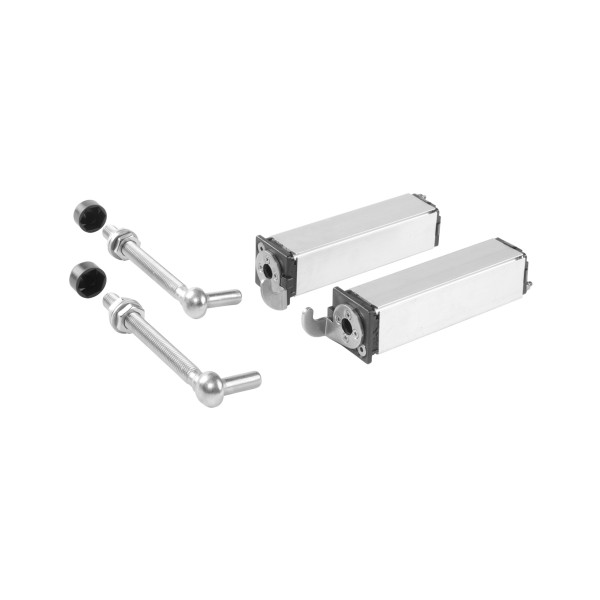

Locinox Spring Hinge with 5-1/8" Hanger Bolt for 40x40mm Garden Gates - SWING40-130
Details
Locinox Spring Hinge with 5-1/8" Hanger Bolt for 40x40mm Garden Gates - SWING40-130
This simple, steel, self-closing spring hinge inserts into any 1 1/2" (16 GA) fence post and is great for your lightweight, garden gate up to 165 lbs. Simply place this hinge into your gate post and adjust with the included Allen key to control the strength needed to open your gate.
Specifications:
- Installation: slides into top and bottom of gate frame
- Only for gate frames 1-1/2" sq, 16 & 14 gauge
- Reversible: left or right hand
- Adjustable spring tension using 1/8" allen wrench
- Maximum gate width: 51"
- Maximum profile thickness: 5/64"
- Max Gate Weight: 165 lbs.
| SKU | SWING40-130 |
|---|---|
| Material Type | Pressed Steel |
| Fits Post Type | General Posts |
| Hinge Type | Spring Hinge |
Gate Frame Size
Need to know the difference between Pipe and Gate Frame Sizes? Check out our guide!
Learn More
|
1 1/2" |
| Installation Guide | Download PDF file |
